K7XQ 10 GHz ( 3 cm ) Microwave Page



4 foot tower mounted dish







Waveguide ( round )  is a 65 foot run of 3/4 inch copper pipe ( found at virtually any hardware store ) 3.2 db of total measured loss including right angle bends.





SMA launch at both ends of waveguide provide RF interface ( photo not too good )

It use a standard flange mount SMA connector positioned at a fixed offset away from the end of the pipe cap end. The center conductor protrudes into the copper pipe as a RF launch ( @ 0.25 inches ). Standard threaded screws are placed at one or two locations near the launch to provide a SWR matching. Rotating the end launches provide further matching when everything is connected together.

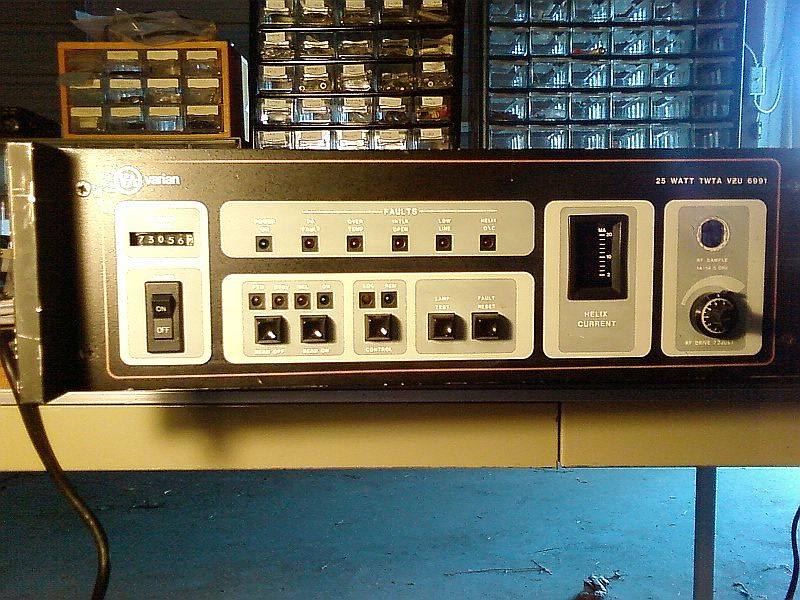

K7XQ 10 GHz Terrestrial Log ( 2 foot dish / 20 W TWT +40 dBm )

2008 10 GHz ARRL Contest 5 contacts total



Callsign Date Time Mode Grid Distance ( miles ) Location Notes
KK6MK 08-17-2008 0229 SSB CM97fs 57.9 Tracy,CA
K6GZA 08-17-2008 0253 SSB CM88wj  109 Mt.Vaca 15 W 4' dish
WA6CDR 08-17-2008 0454 SSB DM04ms 201.1 Mt. Frazier 10 W 6' dish
N6LL 08-17-2008 0506 CW DM04ms 201.1 Mt. Frazier 250 mw 4' dish
KB8VAO 08-18-2008 0326 SSB CM96in  65.9 I-5 mobile omni slot ant









K7XQ 10 GHz Terrestrial Log ( 4 foot dish / 2 W + 33 dBm )

2010  10 GHz ARRL Contest   35 contacts total



Callsign Date Time Mode Grid Distance ( miles ) Location Notes
N9JIM 08-21-2010   SSB CM97MB 28 I-5 & I-152 8 W 18" DISH
W6BY 08-21-2010   SSB CM97KH 27 I-5 Newman lookout 10 W 24" DISH
W6SR 08-21-2010   SSB CM97KH 27 I-5 Newman lookout 5 W 30" DISH
KE6HPZ 08-21-2010   SSB DM04MS 201 Mt. Frazier 7800'
W6YLZ 08-21-2010   SSB DM04MS 201 Mt. Frazier 7800'
WD6CWN 08-21-2010   SSB DM04MS 201 Mt. Frazier 7800' 4' DISH
KK6MK 08-21-2010   SSB CM97TB 22 I-52 near Chowchilla 12 W 3' DISH
AD6IW 08-21-2010   SSB CM97KK 28 I-5 Patterson lookout  8 W 18" DISH
W6BY 09-18-2010 1715 CW CM97KK 28 I-5 Patterson lookout 10 W 24" DISH
N6RMJ 09-18-2010 1716 SSB CM97KK 28 I-5 Patterson lookout
N6NU 09-18-2010 1717 SSB CM97KK 28 I-5 Patterson lookout
AF6KD 09-18-2010 1738 SSB CM97AV 82 Mt. Diablo 2200'
K6MGM 09-18-2010 1738 SSB CM97AV 82 Mt. Diablo 2200'
W6GMD 09-18-2010 1738 SSB CM97AV 82 Mt. Diablo 2200'
AD6FP 09-18-2010 1820 SSB CM98QF 60 Quiggs Mountain San Andreas foothills
N9JIM 09-18-2010 2823 SSB CM97KH 27

I-5 Newman lookout


N6RMJ 09-18-2010   SSB CM97KH 27 I-5 Newman lookout
N6NU 09-18-2010   SSB CM97QH 3 I-140 near Atwater Valley floor
N9JIM 09-18-2010 2116 SSB CM97MB 28 I-5 & I-152 Valley floor
AD6IW 09-18-2010 2143 SSB CM97AV 82 Mt. Diablo 2200'
AF6KD 09-18-2010 2143 SSB CM97AV 82 Mt. Diablo 2200'
N9JIM 09-19-2010 0117 SSB CM97TC 22 I-52 near Chowchilla Valley floor
N9JIM 09-19-2010 1652 SSB CM96VG 78 I-33 Harris Ranch Overlook
W6DXJ 09-19-2010 1708 SSB CM98MR 96 Pine Hill
W6SR 09-19-2010 1708 SSB CM98MR 96 Pine Hill
KK6MK 09-19-2010 1715 SSB DM04MS 201 Mt. Frazier 7800'
N6LL 09-19-2010 1716 SSB DM04MS 201 Mt. Frazier 7800'
AA6IW 09-19-2010 1717 SSB DM04MS 201 Mt. Frazier 7800'
W6BY 09-19-2010 1838 SSB DM05AT 112 Kettleman City Overlook
KI6TWT 09-19-2010   SSB DM06CF 90 I-41 Lemoore Valley floor
N9JIM 09-19-2010 2142 SSB DM06CL 76 I-41 Caruthers Valley floor
KI6TWT 09-19-2010 2145 SSB DM06CL 76 I-41 Caruthers Valley floor
W6BY 09-19-2010 SSB DM05CL 137 I-33 N. Belridge Overlook
N6RMJ 09-19-2010 SSB DM05CL 137 I-33 N. Belridge Overlook
KI6TWT 09-20-2010 0325 SSB CM97SG 10 I-99 Merced Valley floor









K7XQ 10 GHz Terrestrial Log ( 4 foot dish / 1 Watt +30 dBm )

2011  10 GHz ARRL Contest   20 contacts total



Callsign Date Time Mode Grid Distance ( miles ) Location Notes
KI6TWT 08-22-2011 0120 SSB CM97WI 74 Valley floor
WA6QDP 08-22-2011 0234 SSB CM97AV 82 Mt. Diablo 2200'


AA6IW 08-22-2011 0407 SSB DM04MS 201 Mt. Frazier 7800'
W6BY 08-22-2011 0414 SSB CM96WF 82 Valley floor
N6NU 08-22-2011 0416 SSB CM96WF 82 Valley floor
N9JIM 09-17-2011 1810 SSB CM97AV 82 Mt. Diablo 2200'
W6GDM 09-17-2011 1811 SSB CM97AV 82 Mt. Diablo 2200'
K6MGM 09-17-2011 1813 SSB CM97AV 82 Mt. Diablo 2200'
K6QG 09-17-2011 1814 SSB CM97AV 82 Mt. Diablo 2200'
KI6TWT 09-17-2011 1829 SSB DM06BD 93 Valley floor
KK6MK 09-17-2011 2100 SSB CM97MB 27 Valley floor
N9JIM 09-17-2011 2337 SSB CM88WJ 109 Mt.Vaca
W6SR 09-17-2011 2356 SSB CM98MR 96 Pine Hill
KK6MK 09-18-2011 0058 SSB CM96TM 59 Valley floor
K6GZA 09-18-2011 0631 SSB DM04MS 201 Mt. Frazier 7800'
N9JIM 09-18-2011 1733 SSB CM97BC 71 Mt. Loma Prieta
KK6MK 09-18-2011 1906 SSB CM96WF 82 Valley floor
N9JIM 09-18-2011 2301 SSB CM97EI 55 Mt. Hamilton
KK6MK 09-19-2011 0433 SSB CM96OU 35 Valley floor
K6ML 09-19-2011 0434 SSB CM96OU 35 Valley floor









K7XQ 10 GHz Terrestrial Log ( 4 foot dish / New DEMI SSPA 3 W + 35 dBm )

2012  10 GHz ARRL Contest   22 contacts total



Callsign Date Time

Mode

 Grid Distance ( miles ) Location
K6ML 08-18-2012 2301 SSB CM97OB 22 RT. 152 VALLEY FLOOR
N9JIM 08-18-2012 2302 SSB CM97OB 22 RT. 152 VALLEY FLOOR
KI6TWT 08-18-2012 2302 SSB CM97OB 22
K6ML 08-19-2012 0348 SSB CM97KH 27 I-5 Newman lookout
N9JIM 08-19-2012 0348 SSB CM97KH 27 I-5 Newman lookout
KI6TWT 08-19-2012 0351 SSB CM97KH 27 I-5 Newman lookout
AA6IW 08-19-2012 0406 SSB DM04MS 201 Mt. Frazier 7800'
K6GZA 08-19-2012 0408 SSB DM04MS 201 Mt. Frazier 7800'
KR7O 08-20-2012 0352 CW DM07AA 43 RT 145 VALLEY FLOOR
KK6MK 08-20-2012 0412 SSB CM96OU 35 I-5 VISTA
K6GZA 09-15-2012 1538 SSB CM88WJ 109 Mt.Vaca
KK6MK 09-15-2012 1542 SSB CM88WJ 109 Mt.Vaca
K6ML 09-15-2012 1707 SSB CM96RU 34 FIREBAUGH VALLEY FLOOR
W6BY 09-15-2012 1749 SSB CM97AV 82 Mt. Diablo 2200'
KD6W 09-15-2012 2113 SSB CM96QW 28 RT. 33 VALLEY FLOOR
N6NU 09-15-2012 2116 SSB CM96QW 28 RT. 33 VALLEY FLOOR
K6ML 09-15-2012 2119 SSB CM96TM 59 RT. 33 VALLEY FLOOR
W6BY 09-15-2012 2342 SSB CM97HP 46 I-580 VISTA
W6BY 09-16-2012 0125 SSB CM97KH 27 I-5 Newman lookout
W6YLZ 09-16-2012 0400 SSB DM04MS 201 Mt. Frazier 7800'
N6VI 09-16-2012 0513 CW DM04MS 201 Mt. Frazier 7800'
N9JIM 09-16-2012 1716 SSB CM97AV 82 Mt. Diablo 2200'







K7XQ 10 GHz Terrestrial Log ( 4 foot dish / New DEMI SSPA 3 W + 35 dBm )

2013  10 GHz ARRL Contest   33 contacts total



Callsign Date Time Mode Grid Distance ( miles ) Location Notes
KK6MK 08-17-2013 2202 CW CM88WJ 109 MT.VACA Medium conditions
KK6MK 08-18-2013 0456 SSB CM88WJ 109 MT.VACA Medium conditions
KR7O 08-17-2013 2233 SSB DM07GB 67 Valley Floor Portable Medium conditions
KD6W 08-17-2013 2249 SSB CM97qa 23 Valley Floor Portable Medium conditions
K6ML 08-17-2013 2250 SSB CM97qa 23 Valley Floor Portable Medium conditions
N6NU 08-17-2013 2250 SSB CM97qa 23 Valley Floor Portable Medium conditions
N6VI 08-18-2013 0422 SSB DM04MS 201 Mt. Frazier 7800' Medium conditions
W6YLZ 08-18-2013 0422 SSB DM04MS 201 Mt. Frazier 7800' Medium conditions
K6GZA 08-18-2013 0425 SSB DM04MS 201 Mt. Frazier 7800' Medium conditions
AA6IW 08-18-2013 0427 SSB DM04MS 201 Mt. Frazier 7800' Medium conditions
KE6HPZ 08-18-2013 0427 SSB DM04MS 201 Mt. Frazier 7800' Medium conditions
N6RMJ 08-18-2013 0841 SSB DM06ac 94 Valley Floor Portable Medium conditions
KD6W 08-18-2013 0852 SSB DM06ac 94 Valley Floor Portable Medium conditions
N6NU 08-18-2013 0855 SSB DM06ac 94 Valley Floor Portable Medium conditions
N9JIM 08-18-2013 1838 SSB CM97kh 28 I-5 Newman lookout Medium conditions
N9JIM 08-18-2013 1957 SSB CM97mb 27 Valley Floor Portable Medium conditions
N9JIM 08-18-2013 2245 SSB CM97ob 22 Valley Floor Portable Medium conditions
N9JIM 08-19-2013 0106 SSB CM97tc 22 Valley Floor Portable Medium conditions
KD6W 08-19-2013 0211 SSB CM96tu 37 Valley Floor Portable Medium conditions
K6ML 08-19-2013 0225 SSB DM06aa 99 Valley Floor Portable Medium conditions
N6NU 08-19-2013 0231 SSB DM06aa 99 Valley Floor Portable Medium conditions
K6ML 08-19-2013 0546 SSB CM96ou 36 I-5 VISTA Medium conditions
N6NU 08-19-2013 0546 SSB CM96ou 36 I-5 VISTA Medium conditions
KD6W 08-19-2013 0540 SSB CM97qh 3 Merced,Valley Floor Portable Medium conditions
KD6W 08-19-2013 0658 SSB CM97mg 20 Valley Floor Portable Medium conditions
W6BY 09-21-2013 2134 SSB CM97mb 28 I-5 & I-152 Conditions poor, lack of activity
N6NU 09-21-2013 2134 SSB CM97mb 28 I-5 & I-152 Conditions poor, lack of activity
KQ6WN 09-21-2013 2136 SSB CM97mb 28 I-5 & I-152 Conditions poor, lack of activity
KD6W 09-21-2013 2214 SSB CM97sj 10 Valley Floor Portable Conditions poor, lack of activity
W6BY 09-22-2013 2051 SSB CM88WJ 109 Mt.Vaca Conditions poor, lack of activity
K6GZA 09-22-2013 2052 SSB CM88WJ 109 Mt.Vaca Conditions poor, lack of activity
N9JIM 09-22-2013 2105 SSB CM97AV 82 Mt. Diablo 2200' Conditions poor, lack of activity
W6BY 09-22-2013 2341 CW CM98cl 100 Valley Floor Portable Conditions poor, lack of activity









The local microwave gang: K7XQ Jeff , AD6IW Goran, W6DXJ Peter, N6JV Norm, W6BY Brian





The local microwave gang: N6RMJ Pat





Local beacon frequencies: ( click on beacon for pictures):

Mt. Frazier N6CA 10368.3101 MHz DM04MS

Mt. Palos Verdes N6CA 10368.3000 MHz DM03TS

Mt. San Miguel WB6IGP 10368.0700 MHz DM12MQ

Santiago KE6JUV 10368.3300 MHz DM13FR

Mt Allison AD6FP 10369.1500 MHz 37-29.905 N, 121-52.206 W

Mt Vaca W6ASL 10368.3250 MHz 38-24-51 N, 122-06-50 W

Mt St Helena KF6KVG 24191.9900 MHz 38-39-22 N, 122-37-0.9 W

Mt Allison W6QI 24192.0100 MHz 37-29.905 N, 121-52.206 W



SAN BERNARDINO MICROWAVE SOCIETY ( SBMS)

SAN BERNARDINO MICROWAVE SOCIETY Year 2008 Newsletters



SP7JSG 3 cm EME Page ( with sound files )

G4NNS 3 cm EME Page ( with sound files )

F5JWF 3 cm EME Page ( with sound files )





10 GHz page updated :  10-08-2013
